Item specifics
  • Brand Name: REALACC
  • Material: Composite Material
  • RC Parts & Accs: Receivers
  • For Vehicle Type: Helicopters
  • Model Number: Fatshark Goggles
  • Technical parameters: Value 10
  • Use: Vehicles & Remote Control Toys
  • Upgrade Parts/Accessories: Receiver
  • Remote Control Peripherals/Devices: Receiver
  • Four-wheel Drive Attributes: Receiver
  • Tool Supplies: Receiver
Product Description



Description:
Brand Name: Realacc

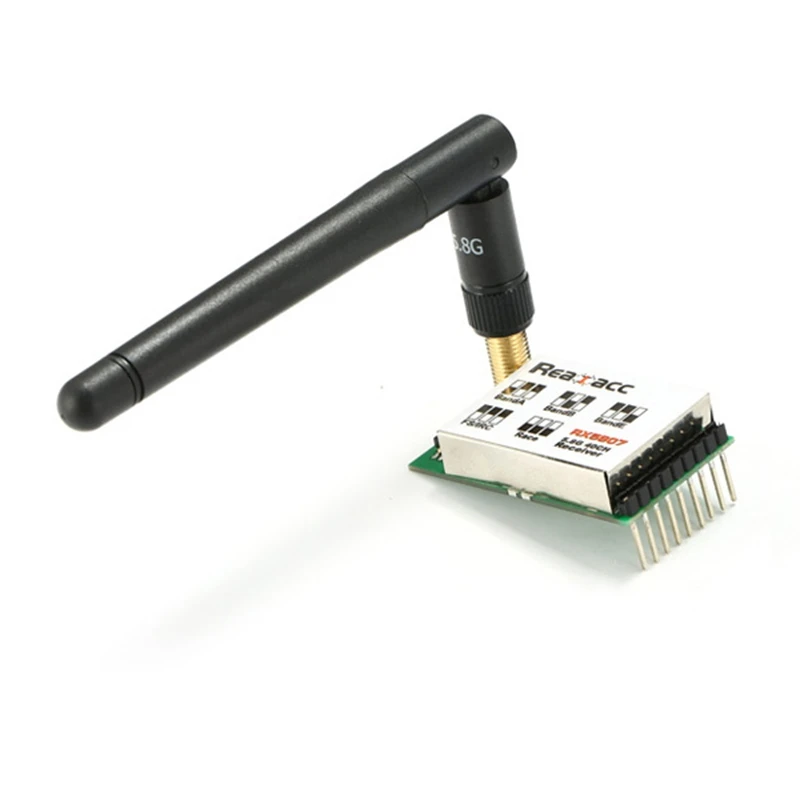

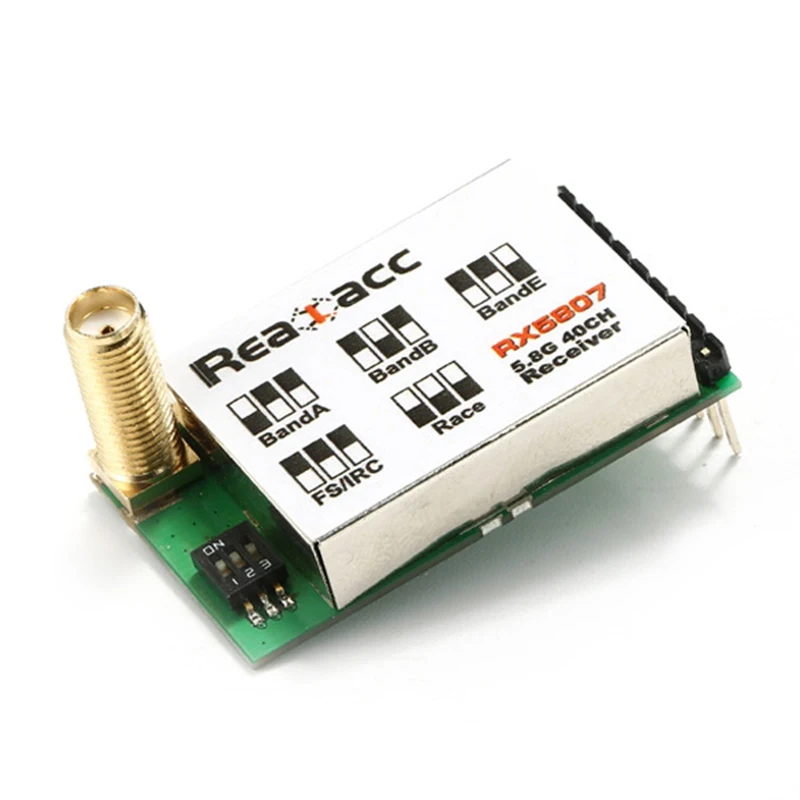

Item Name: Receiver
Power Supply: 5.0V±10%
Video Format: NTSC/PAL
Current Consumption: 210mA,Max
Operating Temperature: -10°~65°
Operating humidity:  85%RH
Receiving frequency range: 5645 ~ 5945MHz 40CH
Receiving Sensitivity:  -85dBm
Video Output impedance: 75C, Typ.
Video Output Level:  1Vp-p, Typ.
Audio Output Level: 1±0.2Vp-p, Typ.
Audio carrier: 6.0MHz(AR), 6.5MHz(AL)
RSSI output voltage: 0.7-2.2V
Antenna: SMA
Weight: 17g


Package Included:
1 x Receiver
1 x Antenna

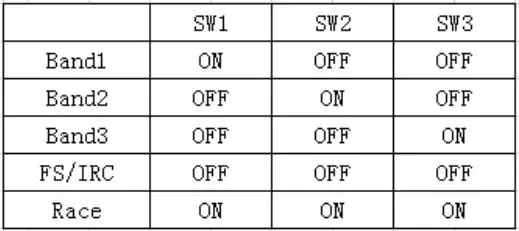

Switch:

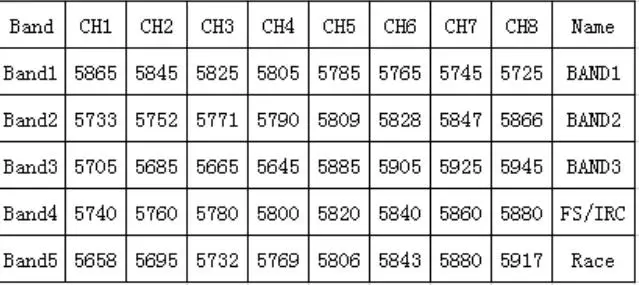

Frequency:










Packaging Details
  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
