Report item
Item specifics
  • Use: Vehicles & Remote Control Toys
  • RC Parts & Accs: Motors
  • Technical parameters: Value 2
  • Model Number: CF2822+C382+UAN20210
  • Four-wheel Drive Attributes: Motors
  • For Vehicle Type: Airplanes
  • Remote Control Peripherals/Devices: Motor
  • Material: Metal
  • Brand Name: EMAX
  • Tool Supplies: Motor
  • Upgrade Parts/Accessories: Motor
  • for: Airplane
  • Place of Origin: Guangdong, China (Mainland)
  • Radio Control Style: RC Model
  • Power Source: Electric
  • Type: Helicopter
Product Description

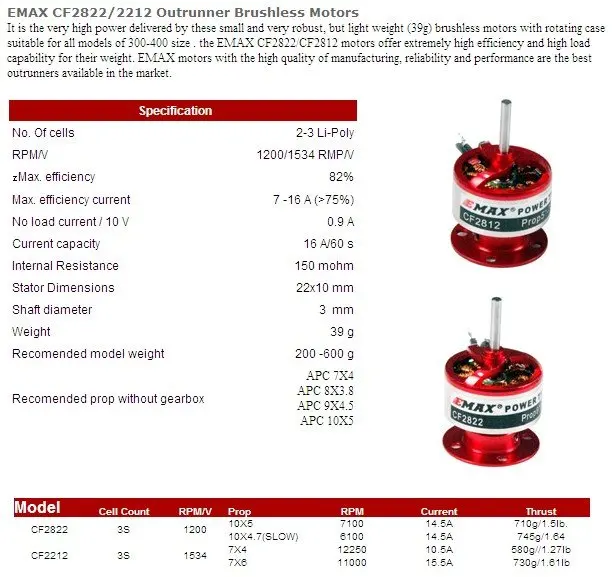

Hobbywing 20A Brushless ESC + EMAX CF 2822 200KV Brushless Motor +3.0 mm 3.0mm propeller adapter
  • Number Of cells: 2-3 Li-Poly
  • RPM/V (kv): 1200
  • Max. efficiency: 82%
  • Max. efficiency current: 7 -16 A (>75%)
  • No load current / 10 V: 0.9 A
  • Current capacity: 16A/60s
  • Internal Resistance: 0.15 ohm
  • Stator Dimensions: 22x10 mm
  • Shaft diameter: 3 mm
  • Weight: 39 g
  • Recommended model weight: 200 -600
  • Recommended prop without gearbox: 9-10 inches
Use top quality components to get strong current endurance.
Low voltage cut-off protection / over-heat protection / throttle signal loss protection.
3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopter.
Smooth, linear and precise throttle response.
Maximum motor speed: 210000 PRM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g
Dimension (L x W x H): 42 x 25 x 8mm
  • Shaft diameter: 3mm (0.12")
  • Total length: 26mm (1")
  • Weight (each): 5g
  • Colour: silver
  • Material: aluminium
  • Usage: brushless motors and speed controllers

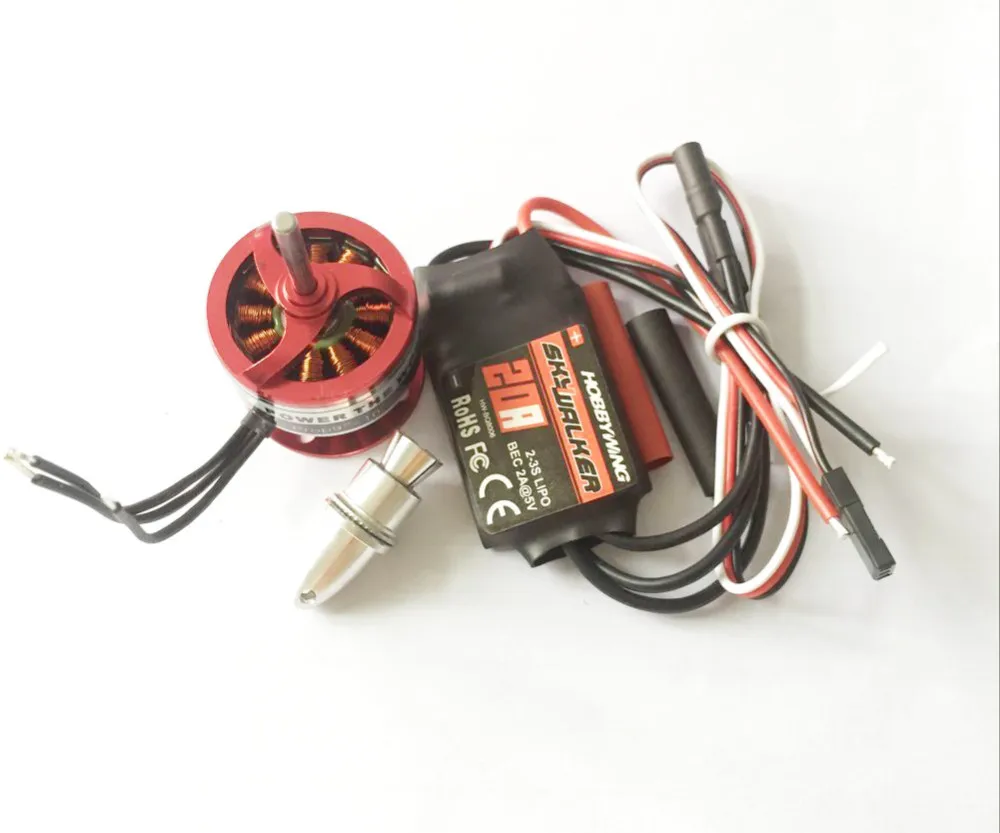

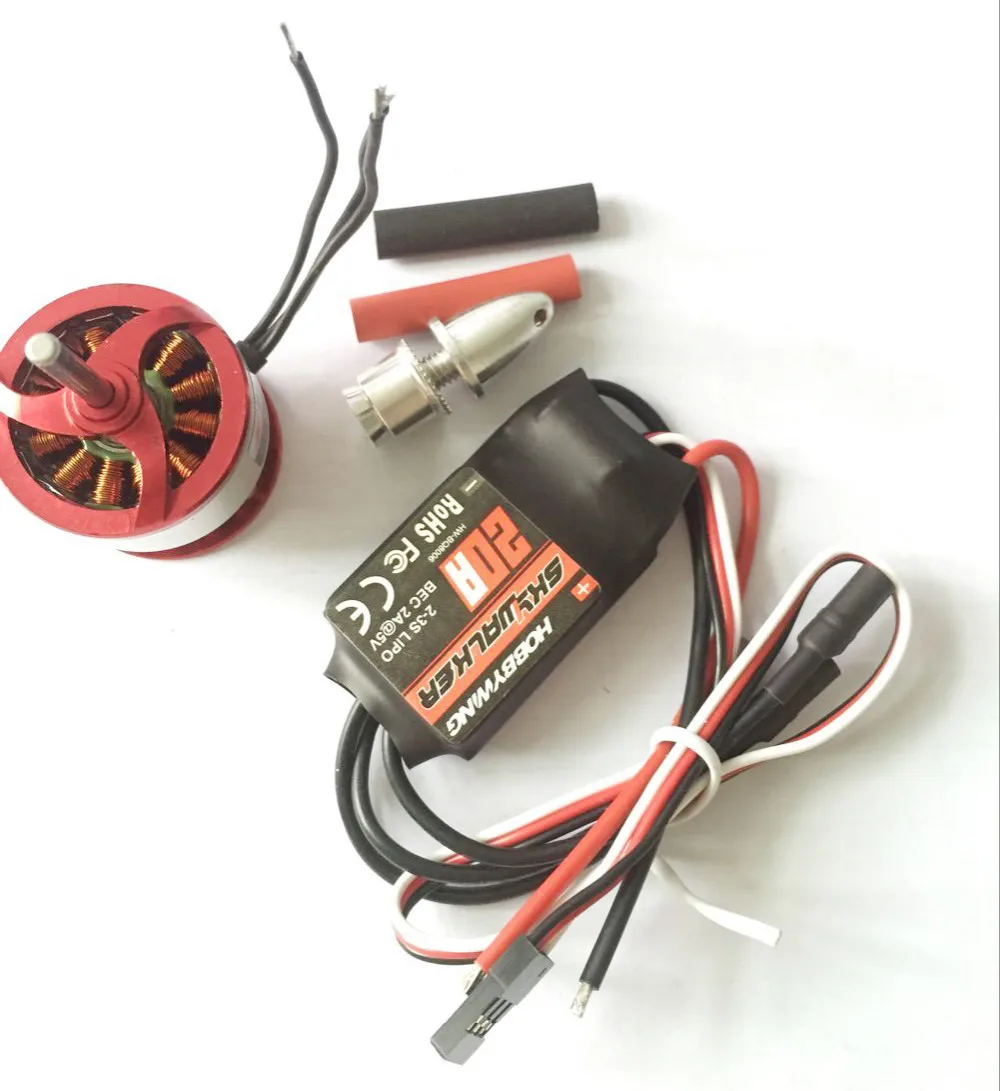

Package include:
1*CF2822 motor
1*20A esc
1*3MM adapter


Items will be sent to all the countries over the world,(Russian Post was affect by LCACS, so the local mail delivery services (including EMS) will be delayed many times)

  • The shipping costs to all countries are the same.
  • Item will be shipped within 1-2 business days
  • This package will be sent by China Airmail Post
  • Items will be checked carefully before sent out.
  • We will use air bubbles to wrap the items carefully

Notice:It\'s has registered mail and common mail . Registered mail need to pay the other $2 .If you want to sent by registered mail ,please pay it and note on the item .Thanks .





Sales Tax:

No Sales Tax is Require





Warranty & return:

  • For ensuring all the items are in good quality, we will test all products before the packages were sent out .
  • 30 days warranty from the purchased date. Please contact us via email before returning the defective item.
  • Return items should include the original packaging and all accessories.

Only defective product will be offered exchange.


Contact us :

Our office hours are :
- 8:30 a.m. to 6:00 p.m. (GMT +8) of Monday to Friday
- 8:30 a.m. to 1:00 p.m. (GMT +8) of Saturday

- 8:30 a.m. to 6:00 p.m. (GMT +8) of Sunday

- Our office is closed on public holidays (China). We apologize for the late reply during the holidays.

We have always been trying to provide the best service and reliable products for every customer. Please contact us to resolve any issue before leaving negative feedback . we will assist you in any way possible and aim to answer all emails .

Packaging Details
  • Unit Type: Set
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
